Step by step Accessing SMS With Delphi: Sending SMS Using Borland Delphi 7 Exploit Comport Component (Siemens))

In this example, will present the way how making SMS delivery program with Delphi, basically, data in data communication series between Delphi and mobile phone happen in Format Protocol Data Unit (PDU). The destination number of sending Message and message that will be sent through Delphi program that is made have to be changed into PDU Form first, next is the data will be sent through serial port to mobile phone.
To make the send SMS Application , please enter the following component to Form 1.


No
Component Name Properties Value
Button1 Caption Connect
Button2 Caption DisConnect
Button3 Caption Convert to PDU
Button4 Caption Send to HP
Button5 Caption Clear
Button6 Caption Start Send SMS
Button7 Caption Set Port
Edit1 Text -
Edit2 Text <Type The SMS here>
Edit3 Text -
Label1 Caption 1) Destination Number :
Label2 Caption 2
Label3 Caption PDU length
Label4 Caption Label length
ComLed1 - -
Memo1 - -
Memo2 - -
Comport1 - -

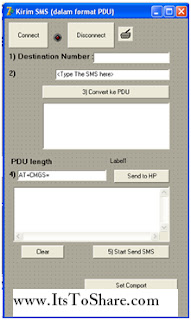

Arrange the Component  in such away so that the visualization program is as follows:


Then type the following source code:


No
Component Event Source Code
1 Button1 OnClick ComPort1.Open;
2 Button2 OnClick ComPort1.Close;
3 Button3 OnClick var tujuan, isi :string;
begin
isi := Edit3.Text;
tujuan := Edit2.Text;
PDU := ConvertText(IM3smsc,'','',tujuan,'','','',isi);
PDU := PDU+#$1A;
memo1.Text := PDU;
Label4.Caption := inttostr(lkirim-1);
4 Button4 OnClick var str : string;
begin
str := Edit1.Text+#13#10;
Comport1.WriteStr(str);
5 Button5 OnClick Memo1.Clear;
Memo2.Clear;
6 Button6 OnClick var str : string;
begin
str := PDU+#13#10;
Comport1.WriteStr(str);
end;
7 Button7 OnClick comport1.ShowSetupDialog;
 8 Comport1 OnRxChar var str : string;
begin
Comport1.ReadStr(str,Count);
Memo2.Text := Memo2.Text + str;
IMPORTANT
Don’t forget to :
Add the variable below in upper implementation
PDU : string;
type the code below in under implementation
const
sOK = 'OK';
sERROR = 'ERROR';
ProXLsmsc ='62818445009';
Simpatismsc ='6281100000';
Mentarismsc ='62816124';
IM3smsc ='62855000000';
var
lkirim : integer;
function text2PDU(text:string):string;
var PDU : string;
geser,panjang,tmp,tmp2,tmp3,n:byte;
begin
PDU :='';
panjang :=length(text);
PDU :=PDU+inttohex(panjang,2);
geser :=0;
for n :=1 to panjang-1 do
begin
tmp2 :=ord(text[n]);
if geser<>0 then tmp2 :=tmp2 shr geser;
tmp :=ord(text[n+1]);
if geser=7 then
begin
geser :=0;
end else
begin
tmp3 :=8-(geser+1);
//zero_020988@yahoo.co.id
if tmp3<>0 then tmp:=tmp shl tmp3;
PDU :=PDU+inttohex((tmp or tmp2),2);
inc(geser);
end;
end;
if geser<7 then
begin
tmp2:=ord(text[panjang]);
if(geser<>0)then tmp2:=tmp2 shr geser;
PDU:=PDU+inttohex(tmp2,2);
end;
result:=PDU;
end;
function ConvertText(smsc,tipe,ref,tujuan,bentuk,skema,
validitas,isi:string):string;
var
PDU,tmp :string;
p,
i :byte;
begin
PDU := '';
If length(smsc)=0 then begin result :=''; exit; end;
if length(tipe)=0 then tipe :='11';
if length(ref)=0 then ref :='00';
if length(bentuk)=0 then bentuk :='00';
if length(skema)=0 then skema :='00';
if length(validitas)=0 then validitas :='FF';
If length(isi)=0 then begin result :=''; exit; end;
if smsc[1]='0' then tmp :='81'+smsc else tmp :='91'+smsc;
if(length(tmp)mod 2)<>0 then tmp :=tmp+'F';
p := length(tmp);
PDU :=PDU + inttohex(p div 2,2) + tmp[1] + tmp[2];
for i:= 2 to length(tmp)div 2 do
begin
PDU :=PDU+tmp[i*2];
PDU :=PDU+tmp[(i*2)-1];
end;
PDU :=PDU+tipe;
PDU :=PDU+ref;
if tujuan[1]='+' then tujuan:=copy(tujuan,2,length(tujuan)-1);
PDU :=PDU+inttohex(length(tujuan),2);
if(length(tujuan)mod 2)<>0 then tujuan:=tujuan+'F';
if tujuan[1]='0' then PDU :=PDU+'81' else begin
PDU :=PDU+'91';
end;
for i :=1 to length(tujuan)div 2 do
begin
PDU :=PDU+tujuan[i*2];
PDU :=PDU+tujuan[(i*2)-1];
end;
PDU :=PDU+bentuk;
PDU :=PDU+skema;
PDU :=PDU+validitas;
tmp := Text2PDU(isi);
PDU :=PDU+tmp;
i := length(tmp);
lkirim := (length(PDU) - p) div 2;
result :=PDU;
end;

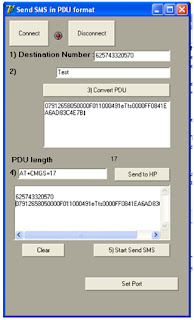

 This is the result of application execution:






Reference :
www.bengkelprogram.com
Septian Herlan Permana (Yogyakarta State University)

 I hope this article can give benefit to the visitors, readers, developer and me. Thanks for visiting and availability for sharing this article by pressing
